GAL 12V-40 Professional

Charger

Order number 1.600.A01.B8X

  • Fast charging speed with 4A current – GBA 12V 3.0Ah charges to 80% in 36 mins
  • Modern and compact design
  • Professional 12V System: 100% compatible with all Bosch Professional 12 V batteries
View more
12V system
Dropdown closed

in cardboard box 1 600 A01 B8X

Select a variant

Your Selection

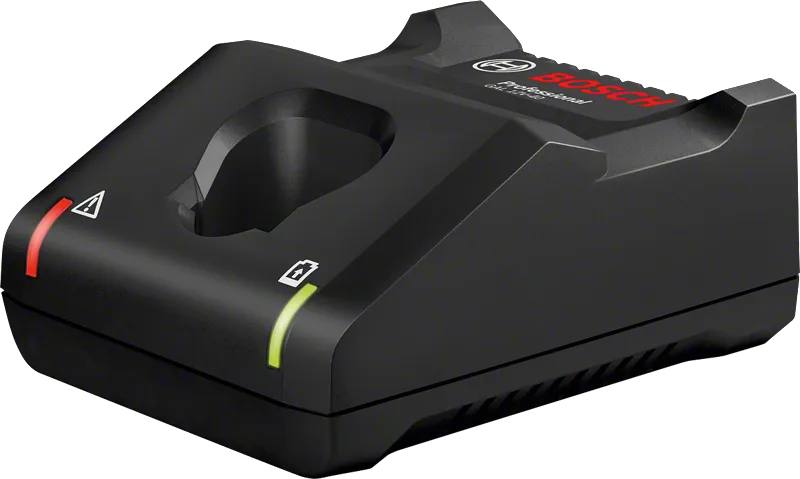

Bosch GAL 12V-40 battery charger for power tools.
in cardboard box

Order number: 1 600 A01 B8X

Find a local dealer

Included in this variant

  • Cardboard box

Your Selection

Bosch GAL 12V-40 battery charger for power tools.

Order number: 1 600 A02 2V0

Find a local dealer

Technical data

Additional data

Battery voltage
12.0 V
Battery charging voltage
10.8 – 12 V
Charge current
4 A
Weight
0.45 kg

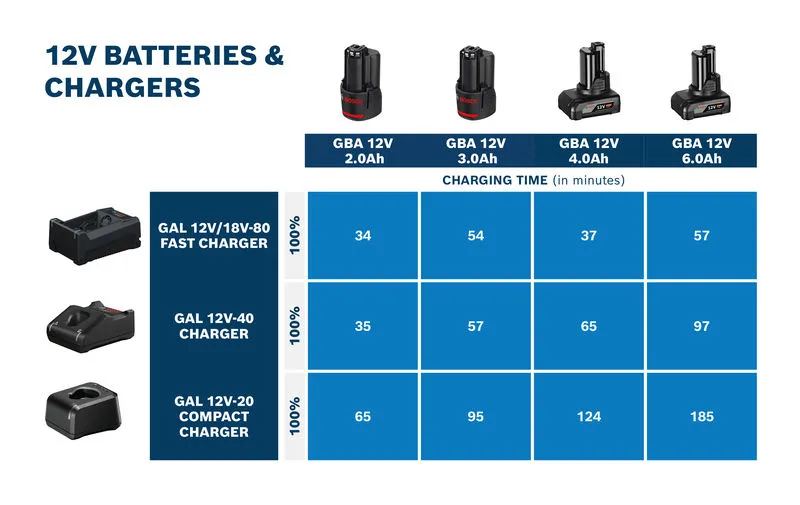

Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.
16/30 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.
24/35 min
Charg. time at bat. cap. 2.5 Ah (80%/100%) approx.
30/42 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.
36/50 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.
48/65 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.
72/95 min

* You can find more information about the deviations in the following link: Technical features of products

GAL 12V-40 Professional: Further information

Product Highlights

The GAL 12V-40 Professional is Bosch’s fast charger. It provides a rapid charging speed for all 12 V batteries, charging a 12V 3.0 Ah battery from 0 to 80% in only 36 minutes. It also has a modern and compact design requiring little wall-space. It is compatible with all Bosch Professional 12 V batteries (Professional 12V System).

Additional Information

The GAL 12V-40 also features a wall-mounting option.
