Batteries & chargers

GAL 18V-40 Professional

Charger

Order number 1.600.A01.9RJ

  • Compact: Due to its modern design it is very compact
  • Compatible with all batteries of the Bosch Professional 18V System and the AMPShare Alliance
  • With 4 A charging current it charges the GBA 18V 4.0 Ah battery up to 80% in only 48 minutes, GBA 18V 2.0 Ah up to 80% in 24 minutes
View more
AMPShare
Professional 18V system
Dropdown closed
Find a local dealer
in cardboard box with quick charger 1 600 A01 9RJ
Find a local dealer

Select a variant

Your Selection

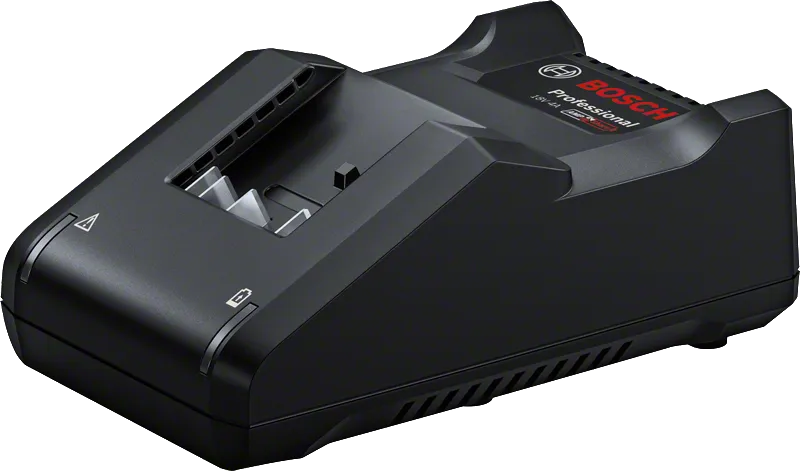

Bosch GAL 18V-40 AMPShare battery charger.
in cardboard box with quick charger

Order number: 1 600 A01 9RJ

Find a local dealer

Included in this variant

  • Cardboard box
  • Quick charger GAL 18V-40 Professional
    Order number: 1 600 A01 9RJ
Your selection

Your Selection

Bosch GAL 18V-40 AMPShare battery charger.

Order number: 1 600 A02 2V1

Find a local dealer
Select Variant

Technical data

Additional data

Battery voltage
18.0 V
Battery charging voltage
14.4 – 18 V
Charge current
4 A
Weight
0.55 kg
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.
24/35 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.
36/50 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.
48/65 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.
60/70 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.
72/95 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.
48/65 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.
113/124 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.
162/172 min

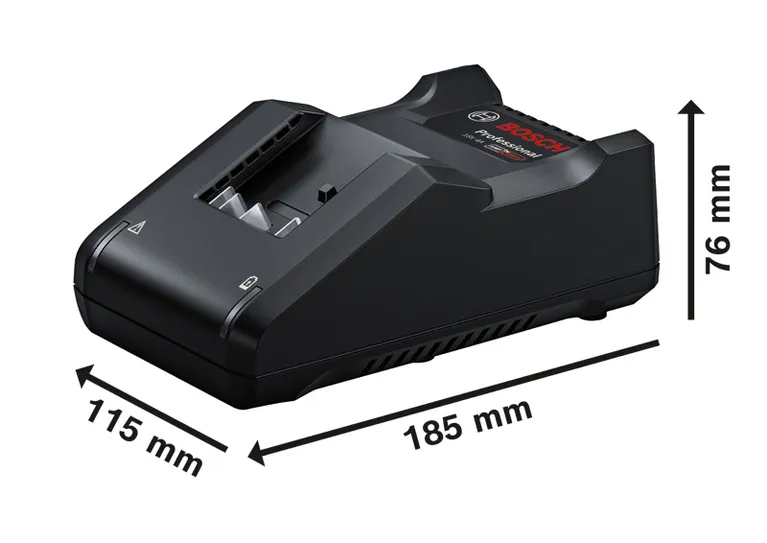

Bosch GAL 18V-40 AMPShare battery charger with dimensions.

* You can find more information about the deviations in the following link: Technical features of products

GAL 18V-40 Professional: Further information

Product Highlights

This tool offers a modern design, which leads to a very high compactness. With its 4 A charging current it charges a GBA 18V 4.0Ah battery up to 80% in only 48 minutes and a GBA 18V 2.0Ah battery up to 80% within 24 minutes. This compact charger is part of the Bosch Professional 18V System and is 100% compatible with all Bosch Professional 18 V batteries. Additionally the GAL 18V-40 offers a wall mounting option. Also compatible with AMPShare, the multi-brand battery alliance.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Fits to GAL 18V-40 Professional

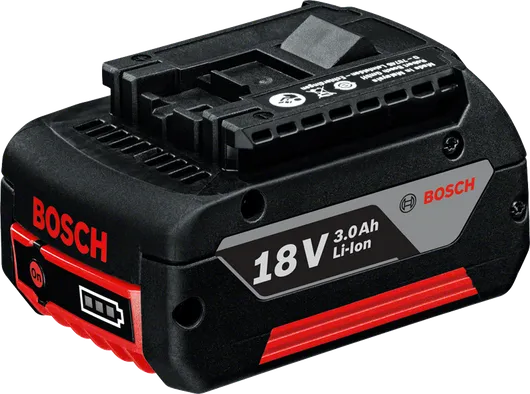

Bosch 18V 3.0Ah Li-Ion battery pack.

GBA 18V 3.0Ah

Battery Pack

The high-endurance 18 volt XL battery with 3.0 Ah and COOLPACK technology
Bosch 18V 4.0Ah Li-ion battery pack.

GBA 18V 4.0Ah

Battery Pack

4.0 Ah battery with extended runtime in the 18 V category

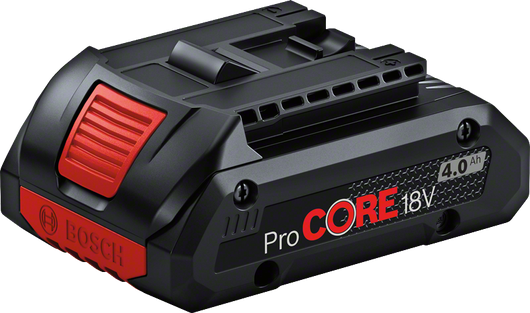

Bosch ProCORE 18V 4.0Ah battery pack.

ProCORE18V 4.0Ah

Battery Pack

Performance of a standard battery in the most compact size and weight
Bosch ProCORE 18V 4.0Ah battery pack.

ProCORE18V 4.0Ah

Battery Pack

Performance of a standard battery in the most compact size and weight

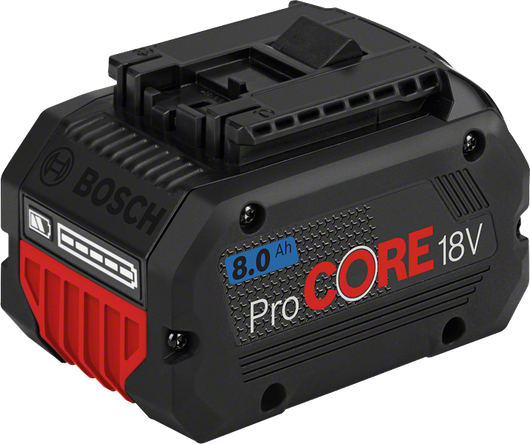

Bosch 18V ProCORE 8.0Ah battery pack.

ProCORE18V 8.0Ah

Battery Pack

High performance battery for up to 2,000 Watt corded power

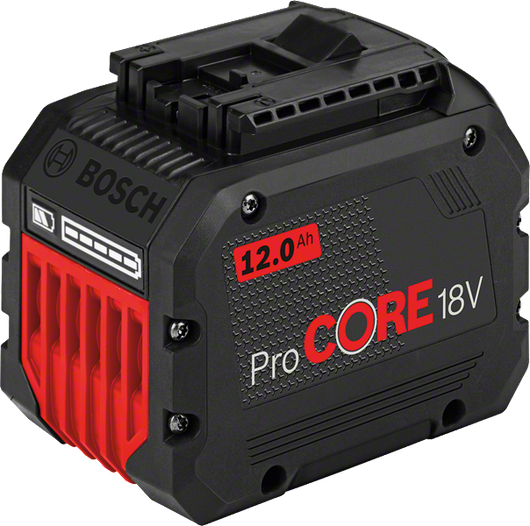

Bosch ProCORE18V 12.0Ah battery pack.

ProCORE18V 12.0Ah

Battery Pack

Maximum performance battery for up to 2,000 Watt corded power and 12 Ah capacity for longest runtime

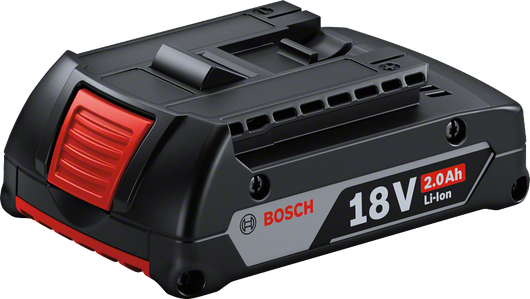

Bosch 18V 2.0Ah Li-Ion battery pack.

GBA 18V 2.0Ah

Battery Pack

Lightweight 2.0 Ah battery in the 18 V category

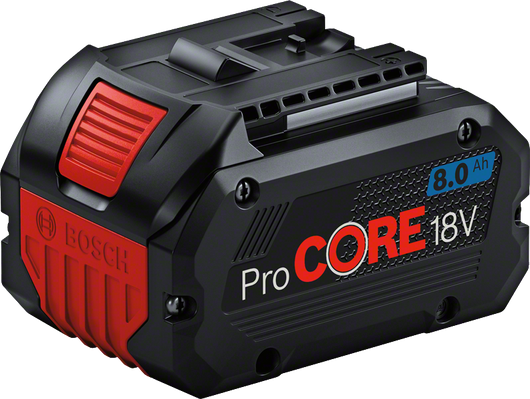

Bosch ProCORE18V 8.0Ah rechargeable battery pack.

ProCORE18V 8.0Ah

Battery Pack

High performance battery for up to 2,000 Watt corded power

Downloads

User Manual

Instruction manual | GAL 18V-40 (PDF 2.1 MB) Insert | Herstellergarantie,Manufacturer's guarantee (EU) (PDF 0.2 MB)
Product data sheet Product data sheet | GAL 18V-40 (PDF 1.5 MB)
