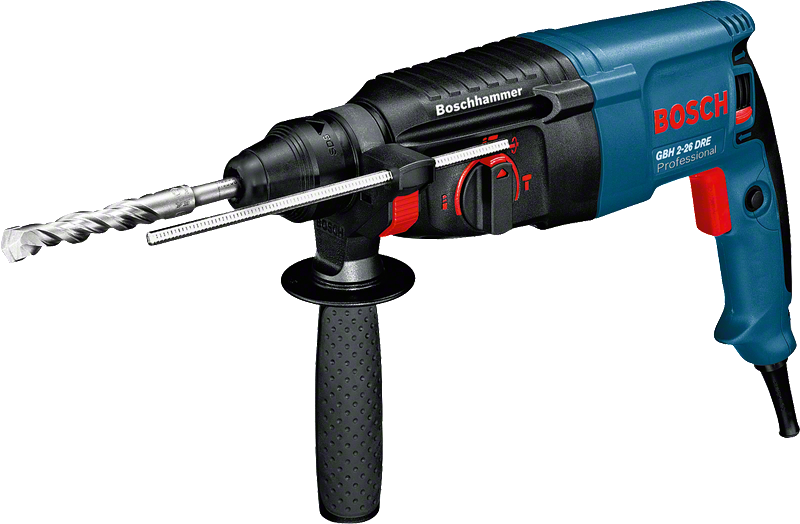

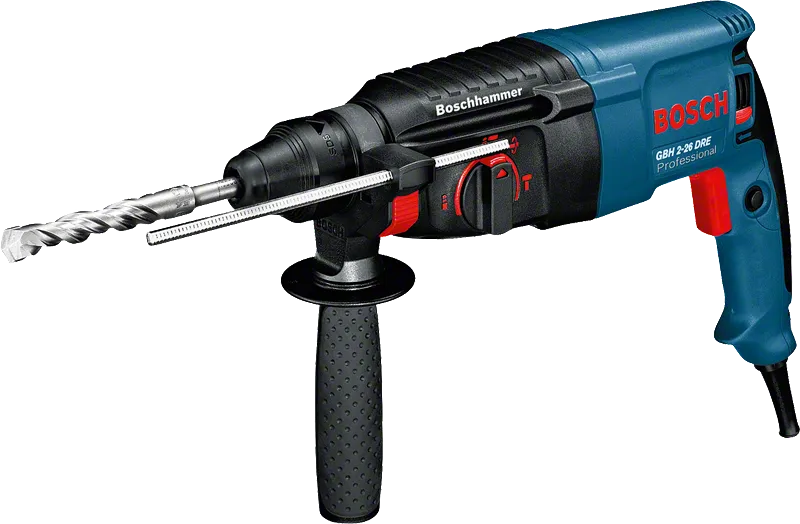

Rotary Hammer with SDS plus GBH 2-26 DRE Professional

Faster than a speeding bullet – The all-rounder for daily use

Technical data
Additional data
Rated input power* 800 W
Impact energy* 2.7 J
Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Weight 2.8 kg

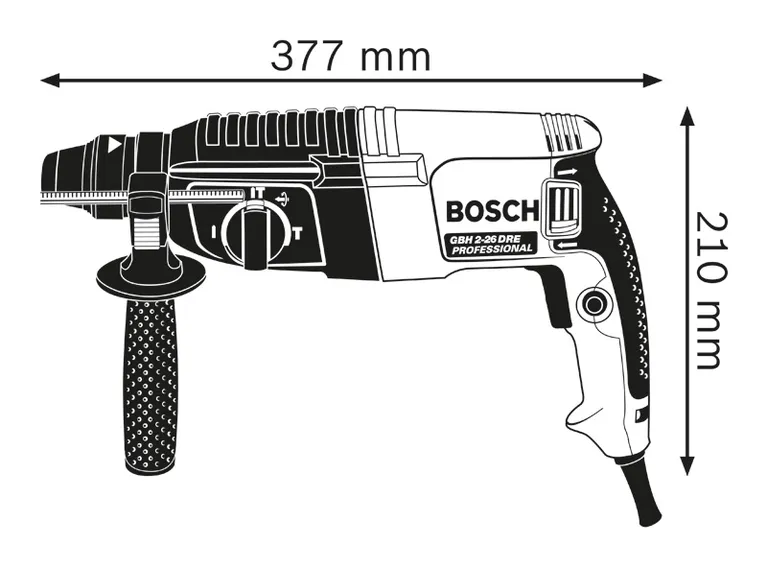

Tool dimensions (width) 83 mm
Tool dimensions (length) 377 mm
Tool dimensions (height) 210 mm
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 26 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Max. drilling diameter masonry, core cutters 68 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 17.5 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 9.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.

Advantages

Faster than a speeding bullet – The all-rounder for daily use

  • Superior drilling rate in the 2 kg hammer class
  • Rotation stop for chiselling
  • Impact stop for drilling in wood and steel

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Best work results with speed pre-selection for applications requiring material-specific speed
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
SDS plus toolholder Optimum power transfer. For Rotary Hammers in the 2 – 4kg class.
Easy and precise control of the RPM thanks to variable speed
Forward / reverse rotation for inserting and removing screws
Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 253 755
  • Auxiliary handle 2 602 025 141
  • Carrying case 2 605 438 098
  • Depth stop 210 mm 1 613 001 010

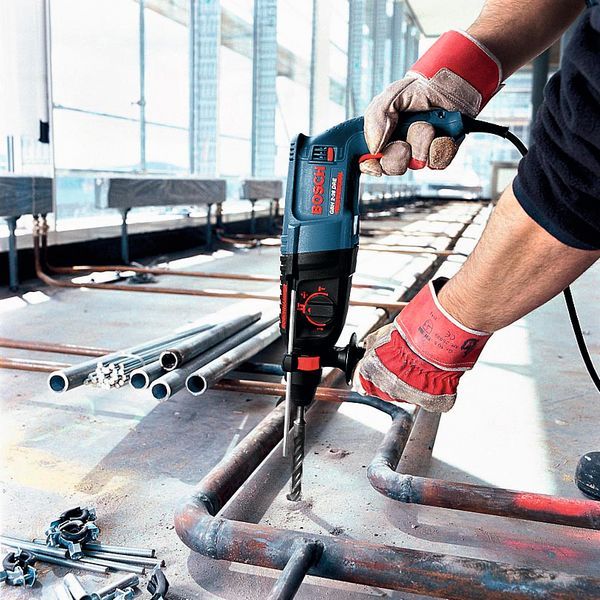

The GBH 2-26 DRE in action!
