Technical data
| Additional data | |
|---|---|
| Rated input power* | 850 W |
| Impact energy* | 3.2 J |
| Impact rate at rated speed | 0 – 5,100 bpm |
| Rated speed | 0 – 1,300 rpm |
| Weight | 2.9 kg |

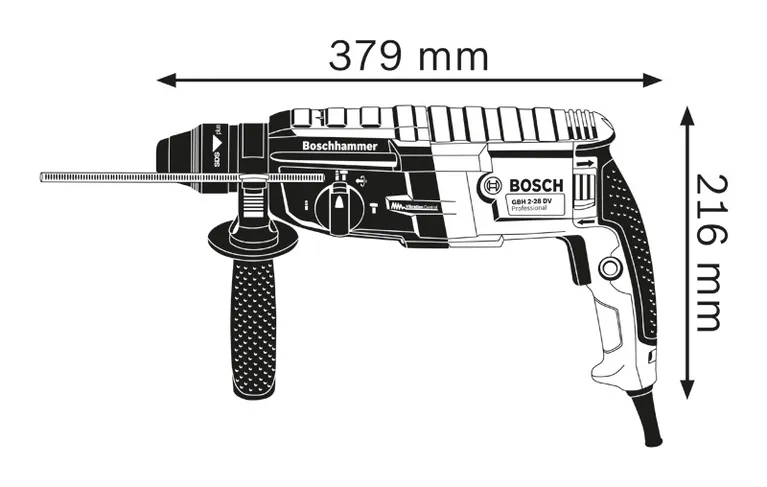

| Tool dimensions (length) | 379 mm |
| Tool dimensions (height) | 216 mm |
| Tool holder | SDS plus |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 4 – 28 mm |
| Max. drilling diameter masonry, core cutters | 68 mm |
| Max. drilling diameter in metal | 13 mm |
| Opt. appl. range concrete, hammer drill bits | 8 – 16 mm |
| Drilling diameter in concrete with core cutters | 68 mm |
| Max. drilling diameter in wood | 30 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 11 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 11 m/s² |
| Uncertainty K | 1.5 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
Advantages

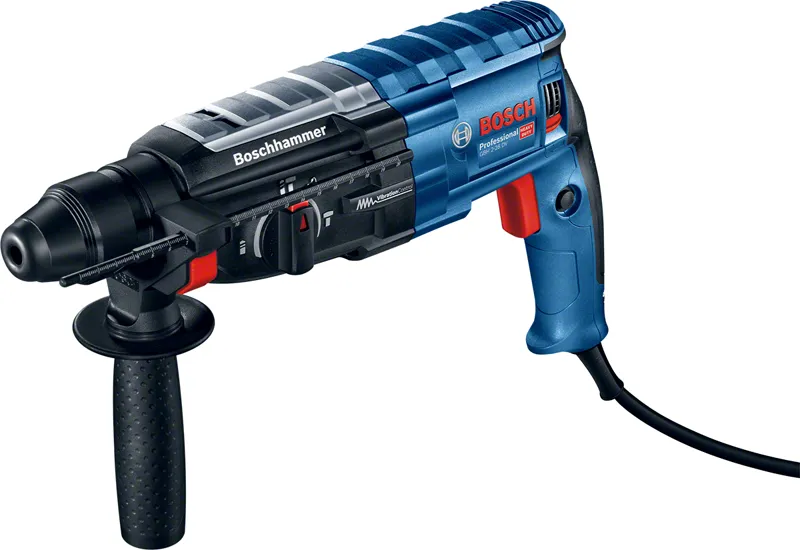

Powerful Bosch hammer with Vibration Control
- Powerful 850 W motor for enhanced performance
- Active Vibration Control for comfortable and fatigue-free use
- Robust metal-covered gearbox for reliability and durability
Functions
What’s Included in this Package
in carrying case with Auxiliary handle
Order number:
0 611 267 1F0
- Depth gauge 1 613 001 009
- Auxiliary handle
- Carrying case
