Impact Wrench

GDS 30 Professional

The powerful tool for large screwdriving applications
GDS 30 Professional
Technical data
Additional data
Rated input power* 920 W
Torque, max. (hard screwdriving applications)* 1,000 Nm
Torque, max. (soft screwdriving applications) 500 Nm
Bit holder 1" external square
Rated speed 860 rpm
Weight 7.3 kg

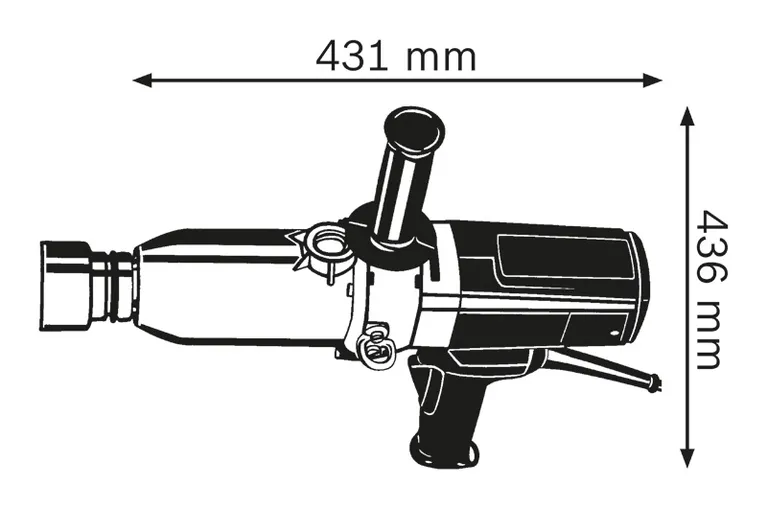

Tool dimensions (length) 431 mm
Tool dimensions (height) 436 mm
Screwdriving
Screw diameter* max. M 30
Total vibration values (Tightening screws and nuts of maximum permitted size)
Vibration emission value ah 4 m/s²
Uncertainty K 0.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 113 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful tool for large screwdriving applications

  • For heavy screw joints on trucks, construction machinery, in commercial vehicle construction, in the petrochemical and other heavy industries
  • Auxiliary handle with backing pad that can be fitted in two positions for better handling
  • Hanging hook for attaching to a balancer

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Forward / reverse rotation for inserting and removing screws
What’s Included in this Package

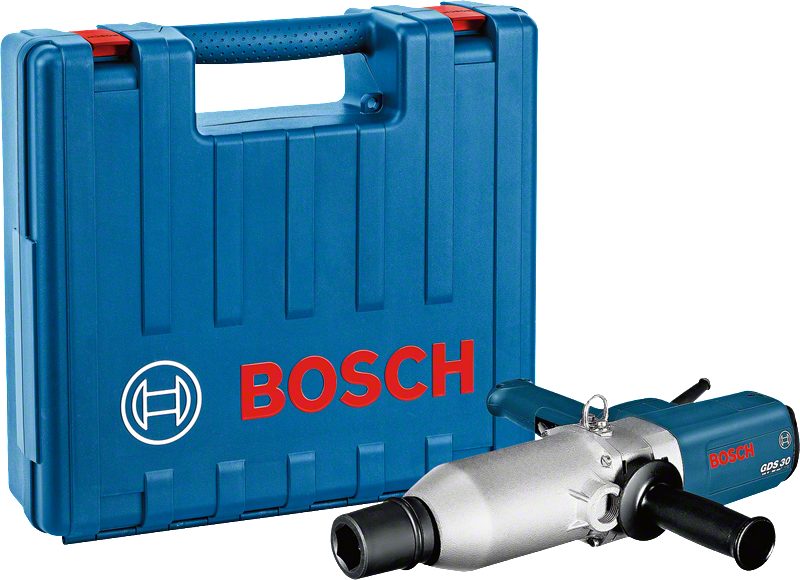

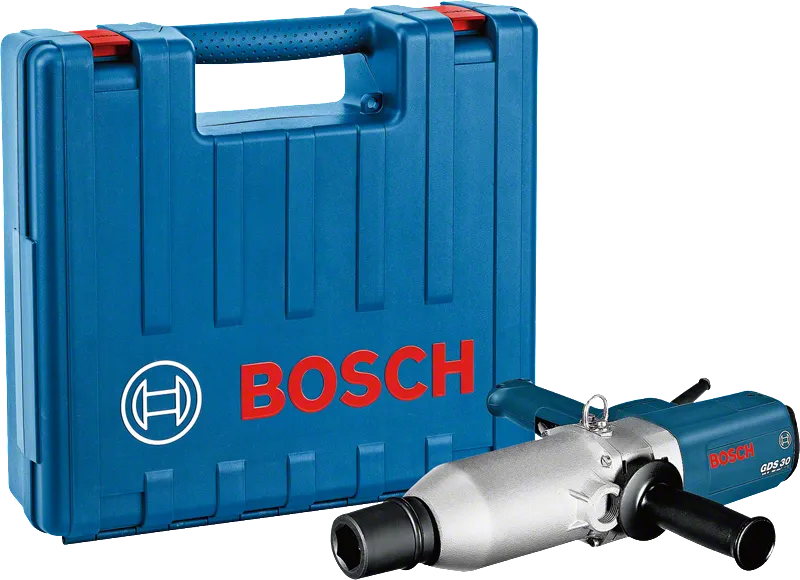

in carrying case with accessory set
in carrying case with accessory set
Order number: 0 601 435 103
  • Carrying case (spare part number 1 605 438 1BZ)
  • Auxiliary handle 2 602 025 075
  • Hanging loop (spare part number 3 601 310 013)
