Technical data
| Additional data | |
|---|---|
| Rated input power* | 650 W |
| Planing width* | 82 mm |
| Cutting depth* | 0 – 2.6 mm |
| Weight | 2.8 kg |
| Adjustable rebating depth | 0 – 9 mm |
| No-load speed | 16,500 rpm |

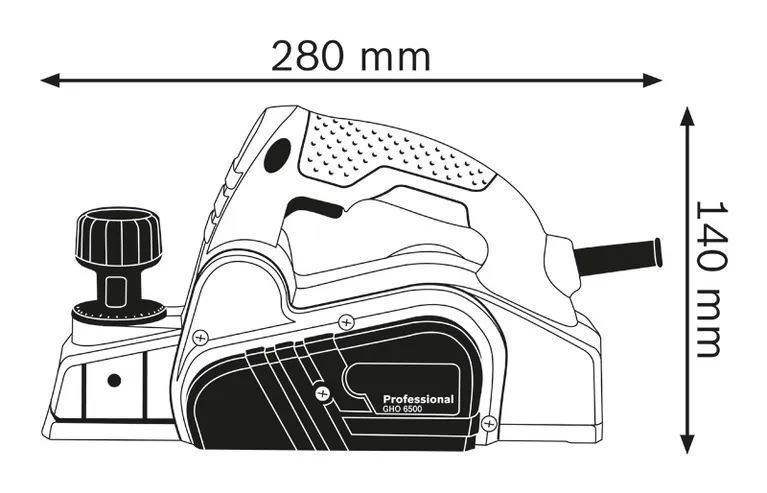

| Tool dimensions (width) | 158 mm |
| Tool dimensions (length) | 280 mm |
| Tool dimensions (height) | 140 mm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
Advantages
Powerful planer with max. 2.6 mm cutting depth!
- Powerful 650 W motor provides fast planning speed
- New design of the max 2.6 mm cutting depth adjustment
- Optimised airflow for wood chip ejection
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 596 0F0
- Carton box
- Allen key
- Parallel guide
- Sharpening device for HSS blade
- Setting gauge for HSS blade
