Laser measures

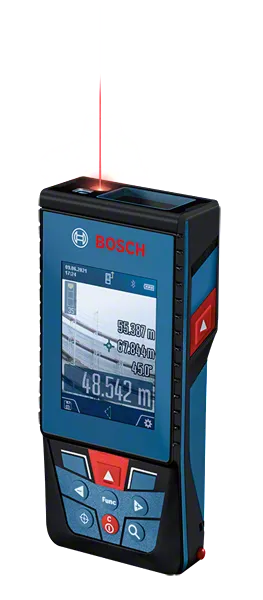

GLM 100-25 C Professional

Laser Measure

Precise laser measure for easy indoor and outdoor measuring and documenting

  • Accurate, 100-m laser measuring thanks to digital camera viewfinder with zoom function
  • Large, high-contrast IPS colour display with flip screen ensures optimal reading
  • Laser measure connects via Bluetooth for efficient data documentation

Functions & key features

Iso-Norm-16331 1-Icon-positive
Real time view
IP54 dust and splash water protection

Your Selection

  • with 3 x battery (AA), protective acc.
Show variant
Check availability on location
Find a local dealer
with 3 x battery (AA), protective acc. 0 601 072 YK0
Find a local dealer

GLM 100-25 C Professional

Your Selection

with 3 x battery (AA), protective acc.

Order number: 0 601 072 YK0

Find a local dealer

Included in this variant

  • Manufacturer’s certificate
  • Protective Bag
  • 3 x 1.5 V LR6 battery (AA)
Your selection

Technical data

Additional data
Dust and splash protection IP 54
Measurement time, typical < 0.5 s
Units of measurement m/cm, ft/inch
Laser diode 650 nm, < 1 mW
Measurement range 0.08 – 100.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°* (*plus use-dependent deviation)
Measurement time, max. 4 s
Power supply 3 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Weight, approx. 0.23 kg
Memory capacity (values) 50
Tripod thread 1/4"
Digital viewfinder integrated
Data transfer Bluetooth™ 4.2 Low Energy
Laser colour Red
Measuring range, up to 100 m

GLM 100-25 C Professional: Further information

Product Highlights

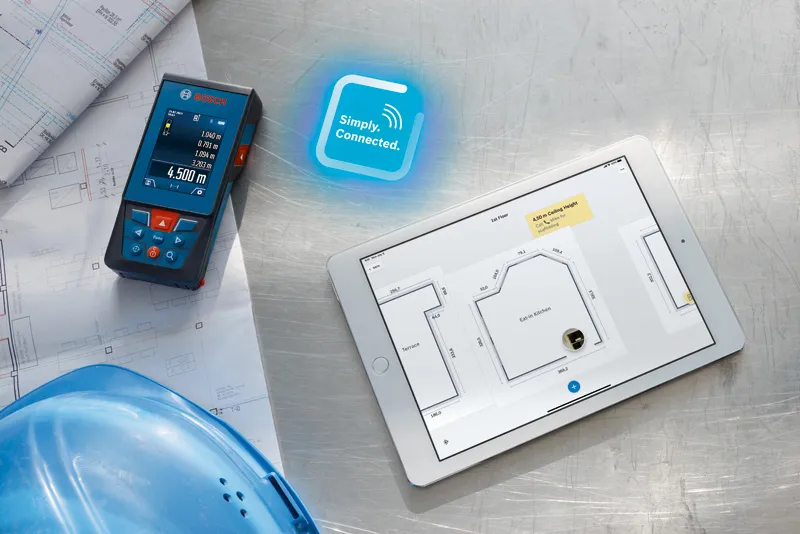

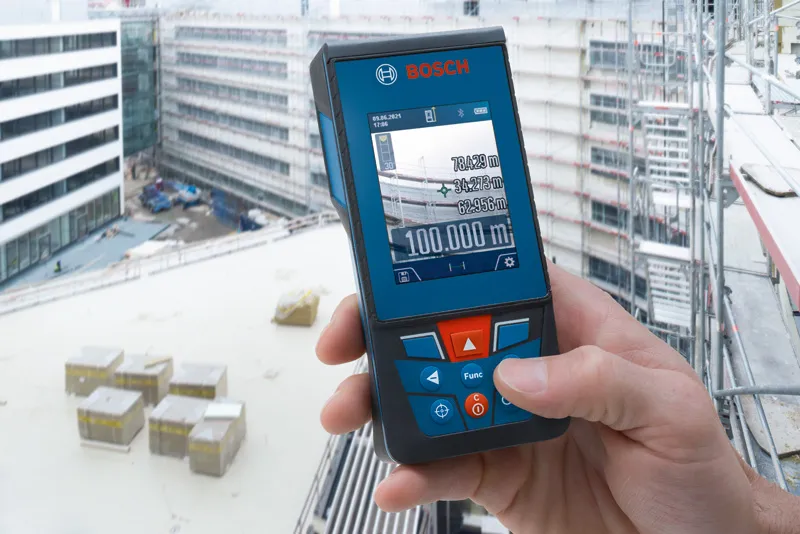

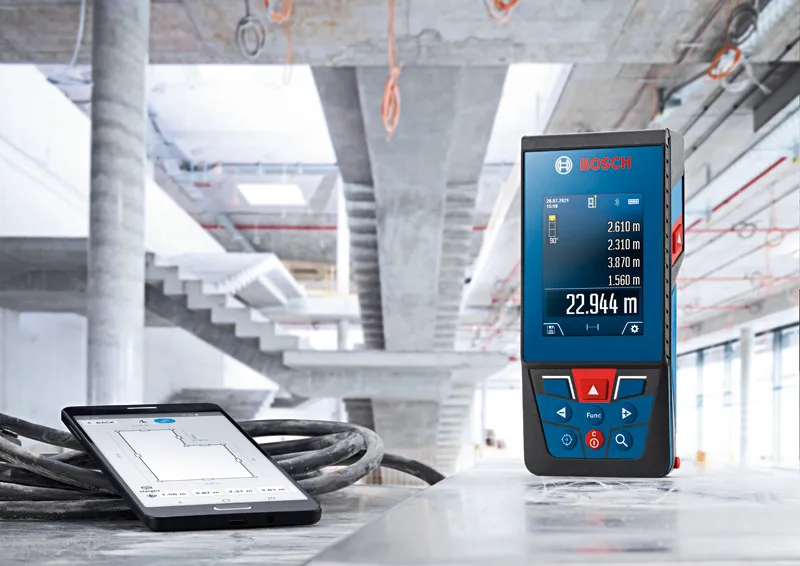

This professional outdoor laser measure features a digital camera viewfinder with a zoom function that precisely measures distances up to 100 m. The camera picture and measurements are easy to see on the big, high-contrast, 2.8” IPS colour display, which rotates for portrait or landscape view. For convenient documentation, measurement results can be transferred via Bluetooth to the Bosch MeasureOn App. This laser measure is the ideal solution for tough job sites thanks to IP54 dust and water protection, and scratch-resistant display glass.

Equipment & Application

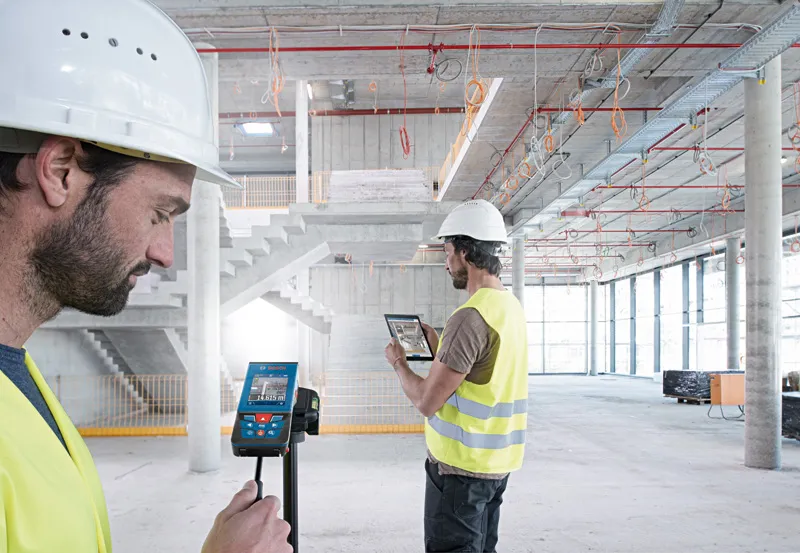

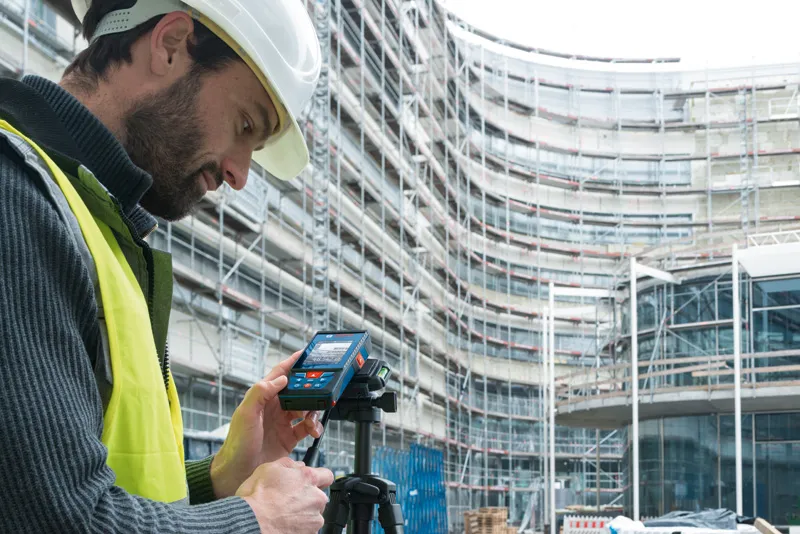

Architects, construction managers, and electricians will appreciate the outdoor capability, easy readability, and convenient documentation of this robust laser measure.

Additional Information

The GLM 100-25 C Professional has a user-friendly HMI interface with a click wheel for access to all features. A useful help option displays detailed images of each measuring function for easy comprehension.
