New tools
New

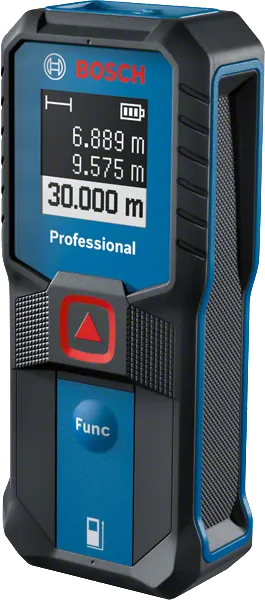

GLM 30-23 Professional

Laser Measure

GLM 30-23

Easy-to-use, pocket-sized laser measure for professionals

  • Small size and modern interface with only two buttons for convenience and ease of use
  • Fast and accurate measurements thanks to the high-precision system and ISO 16331-1 certification
  • Multiple measuring functions and units allow for versatile applications

Functions & key features

Iso-Norm-16331 1-Icon-positive
Big Numbers Mode
Measurement accuracy ± 1.5 mm plus use-dependent deviation

Your Selection

  • with 2 x battery (AAA)
Show variant
Check availability on location
Find a local dealer
with 2 x battery (AAA) 0 601 072 XF0
Find a local dealer

GLM 30-23 Professional

Your Selection

New

with 2 x battery (AAA)

Order number: 0 601 072 XF0

Find a local dealer

Included in this variant

  • 2 x 1.5 V LR03 battery (AAA)
Your selection

Technical data

Additional data
Laser diode 635 nm, < 1 mW
Measurement range 0.15 – 30.00 m
Weight, approx. 0.09 kg
Measurement time, typical 0.5 s
Laser class 2
Measurement accuracy, typical ± 1.5 mm* (*plus use-dependent deviation)
Measurement time, max. 4.2 s
Power supply 2 x 1.5 V LR03 (AAA)
Automatic deactivation 5 min
Units of measurement m/cm/mm
Laser colour Red
Measuring range, up to 30 m

GLM 30-23 Professional: Further information

Product Highlights

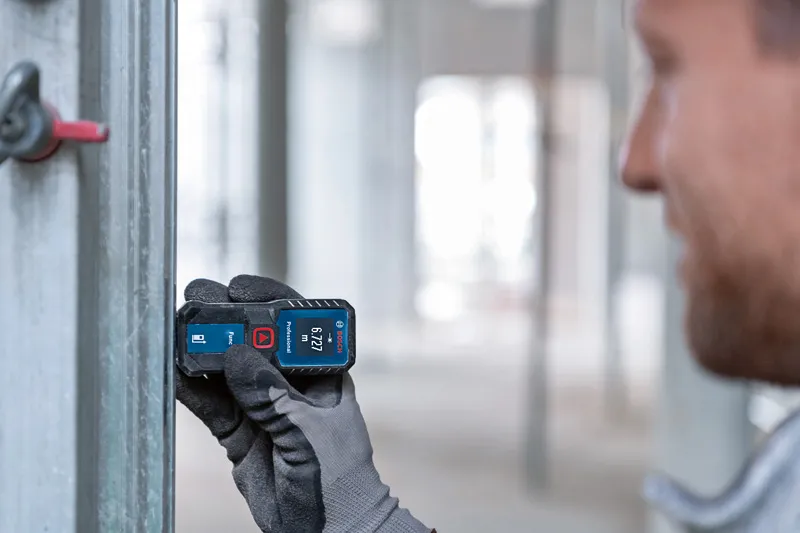

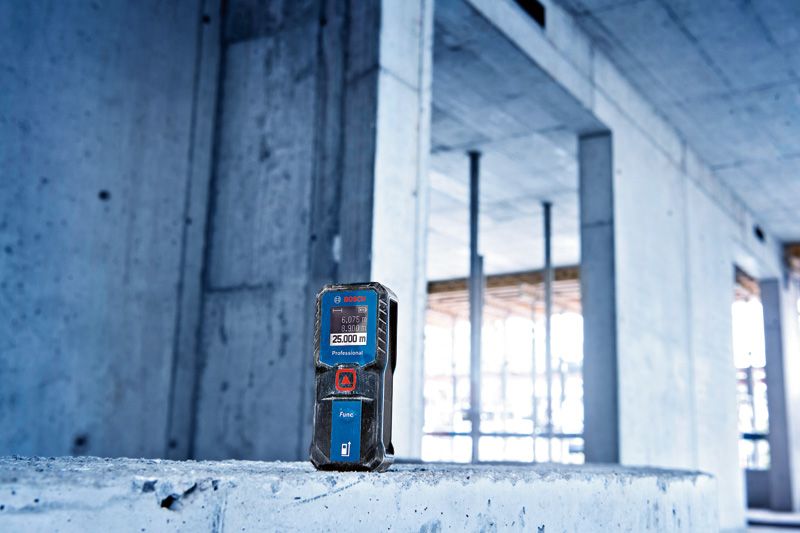

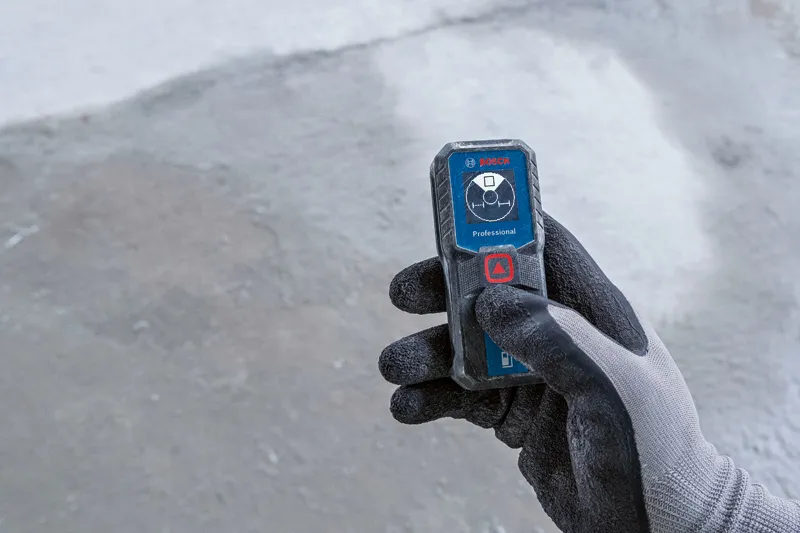

The laser measure GLM 30-23 Professional is the handy, user-friendly solution for quick and accurate indoor measurements. This pocket-sized tool allows for intuitive measuring thanks to a modern user interface and only two buttons. The measurements are exact and consistent due to the high-precision system and ISO 16331-1 certification that meet professional needs. With multiple measuring functions and units, including length, area, and continuous measurement, this laser measure offers a high degree of versatility.

Equipment & Application

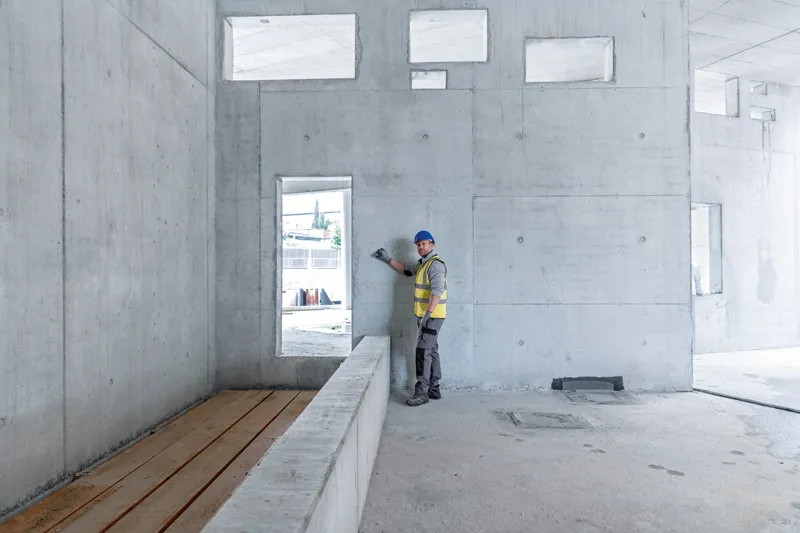

This convenient laser measure is ideal for the calculation of material needs and cost estimates by indoor tradespeople including floor layers, drywallers, tilers, painters, carpenters, and HVAC installers.

Additional Information

This versatile measuring tool has a rubber-protected housing, robust cover glass, and silicon keypad.
