Laser measures

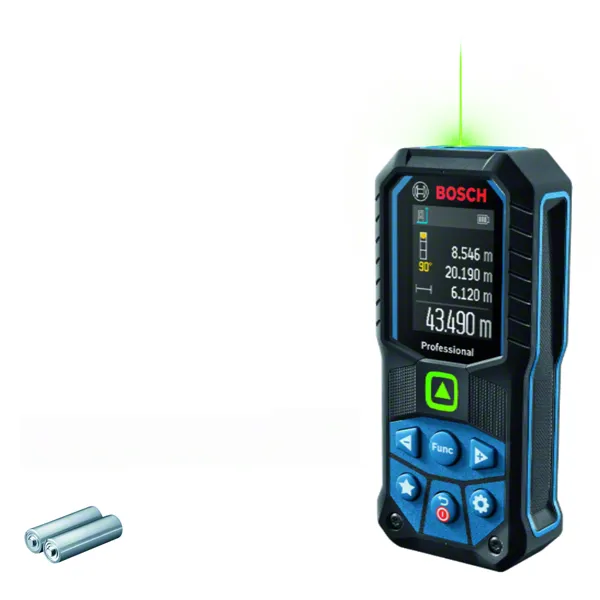

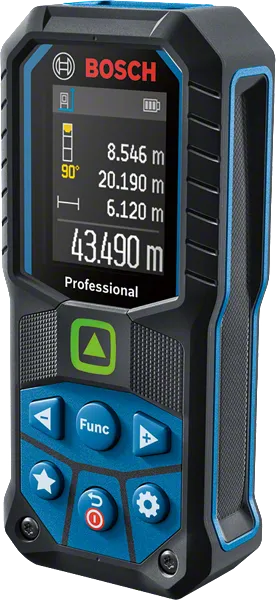

GLM 50-23 G Professional

Laser Measure

GLM 50-23 G

Outstandingly robust: 2-in-1 laser measure with green laser for rough jobsites

  • Integrated 360° tilt sensor for easy angle / inclination measurement, an added versatility to the laser measure
  • Intuitive user interface with additional supportive features (favourite button, colour display, help function) makes handling convenient
  • Ideal for demanding jobsites thanks to IP 65 protection, and shock-absorbing rubber casing

Functions & key features

Laser class 2 Laser class for measuring tools.

Your Selection

  • with 2 x battery (AA), Manufacturer’s certificate
Show variant Find a local dealer

with 2 x battery (AA), Manufacturer’s certificate 0 601 072 VK0

GLM 50-23 G Professional

Your Selection

GLM 50-23 G
with 2 x battery (AA), Manufacturer’s certificate

Order number: 0 601 072 VK0

Find a local dealer

Included in this variant

  • Manufacturer’s certificate
  • 2 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Laser colour Green
Measurement time, typical < 0.5 s
Units of measurement m/cm, ft/inch
Laser diode 515 nm, < 1 mW
Measurement range 0.05 – 50.00 m
Laser class 2
Measurement accuracy, typical ± 1.5 mmᵈ
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) ± 0.2°ᶜ
Measurement time, max. 4 s
Power supply 2 x 1.5 V LR6 (AA)
Automatic deactivation 5 min
Weight, approx. 0.2 kg
Memory capacity (values) 30
Dust and splash protection IP 65
Tripod thread 1/4"
Measuring range, up to 50 m

GLM 50-23 G

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᶜ At >0°C, <100°C, for other surface temperatures, see User Manual

ᵈ Plus deviations depending on application and distance, see User Manual

GLM 50-23 G Professional: Further information

Product Highlights

The laser measure GLM 50-23 G Professional offers a highly durable design and green laser spot with integrated inclinometer. Thanks to the IP 65 protection-certified design and a shock-absorbing rubber casing, the tool is protected against jet water and ingress of dust. Intuitive handling is ensured by its smart user interface with many helpful features such as a high-end colour display, a handy help function and a dedicated favourite shortcut button.

Equipment & Application

Being able to calculate material needs, room and wall areas, it is the ideal choice for architects, electricians, and many other professionals.

Additional Information

It comes with a dedicated favourite shortcut button. Users can then instantly access the preset measuring function by simply pressing the favourite button without the need to scroll through the HMI.
