Rotation lasers

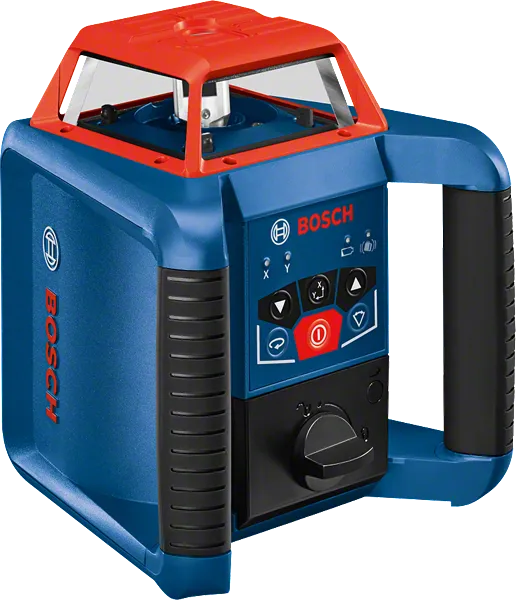

GRL 350 HV Professional

Rotation Laser

Rotational laser for horizontal and vertical application with manual dual slope

Versatile - Horizontal and vertical manual dual slope function enable change in grade in two-axis application
Flexible - Variable-speed and Scan-angle selection allow optimum usability at different lighting conditions
Robust - IP 56 rated to protect against dust and water for tough jobsite conditions, with shock-warning function to alert error due to vibration

Your Selection

with 2 x battery (LR20), laser receiver

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

with 2 x battery (LR20), laser receiver 0 601 061 S40

Find a local dealer

GRL 350 HV Professional

Your Selection

with 2 x battery (LR20), laser receiver

Order number: 0 601 061 S40

Find a local dealer

Included in this variant

Receiver bracket RB 30

Order number: 2 610 A14 830
Universal mount WM 4 Professional

Order number: 0 601 092 400
2 x 1.5 V LR20 battery (D)
Laser receiver LR 30 Professional
Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
Laser target

Order number: 1 608 M00 70B
1 x 9 V block battery (6LR61)

Your selection

Technical data

Additional data
Colour of laser line	red
Laser diode	630 – 650 nm, < 5mW
Operating temperature	-10 – 50 °C
Storage temperature	-20 – 70 °C
Laser class	3R
Working range	up to 60 m
Working range with receiver	up to 350 m (Diameter)
Accuracy	± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range	± 5° (8%)
Levelling time	30 s
Dust and splash protection	IP 56
Rotation speed	0/150/300/600 min−1
Power supply	2 x 1.5 V LR20 (D)
Operating time (max.)	30 h
Tripod thread	5/8"
Weight, approx.	1.8 kg
Color of plumb points	red
Working range, value	60 m
Working range with receiver, value	350 m

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products
