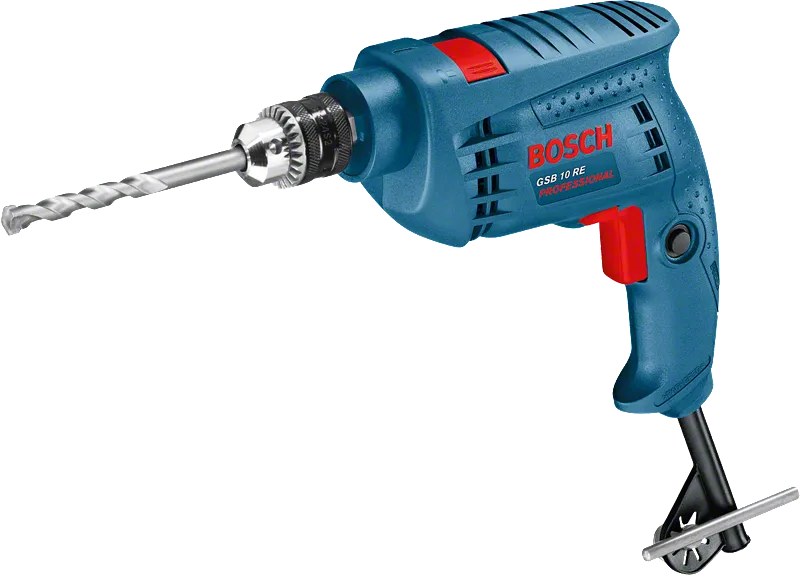

Impact Drill

GSB 10 RE Professional

Compact power – The most compact and powerful impact drill in its class
  • Symbolimage
  • Symbolimage
GSB 10 RE Professional
Technical data
Additional data
Rated input power* 500 W
Weight 1.5 kg
No-load speed 0 – 2,600 rpm
Power output 250 W
Drill spindle connecting thread 3/8"-24 UNF
Chuck capacity, min./max. 1 – 10 mm

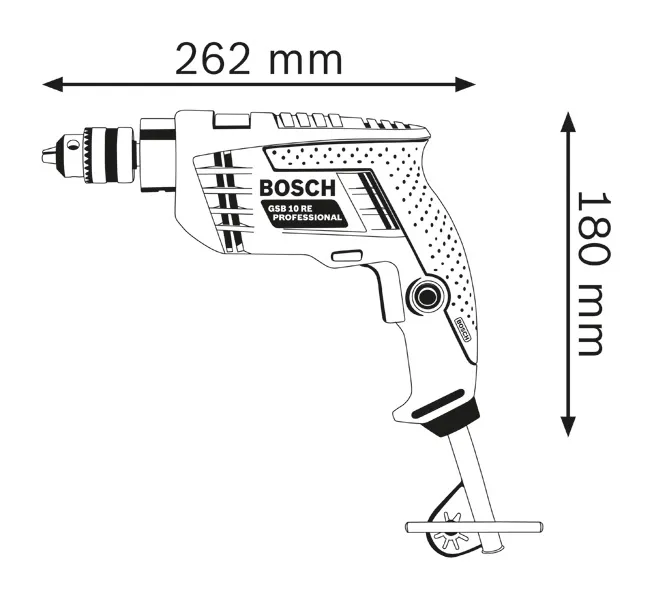

Tool dimensions (width) 69 mm
Tool dimensions (length) 262 mm
Tool dimensions (height) 180 mm
Impact rate at no-load speed 0 – 41,600 bpm
Drilling range
Drilling diameter in concrete* 10 mm
Drilling diameter in wood* 20 mm
Drilling diameter in steel 8 mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

Compact power – The most compact and powerful impact drill in its class

  • Robust and powerful 500 W motor
  • Extremely compact for working in tight spaces and overhead
  • Low weight of only 1.5 kg for fatigue-free working

Functions

Forward / reverse rotation for inserting and removing screws
Woodworking The professional power tools for woodworking from Bosch.
Metalworking The professional power tools for metalworking from Bosch.
Construction The professional power tools for construction from Bosch.
What’s Included in this Package
GSB 10 RE Professional
GSB 10 RE Professional
Order number: 0 601 216 1F4
  • Keyed chuck 10 mm 2 608 571 078
  • 100 pcs accessory set
