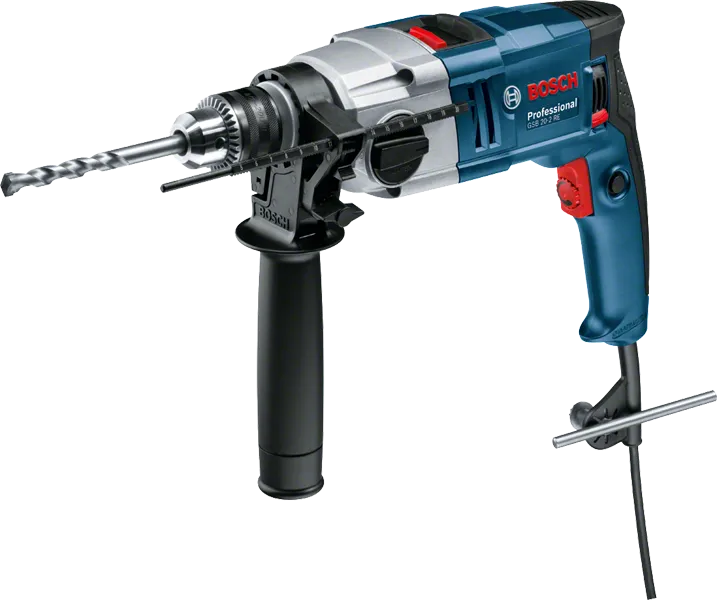

Impact Drill GSB 20-2 RE Professional

Powerful, dual-speed impact drill with superior durability and performance

Technical data
Additional data
Rated input power* 800   W
Weight 2.5   kg
No-load speed 0 – 1,100 / 3,000   rpm
Rated speed 740 / 2   rpm
Rated torque 5.2 / 2.0   Nm
Chuck capacity, min./max. 1.5 – 13   mm

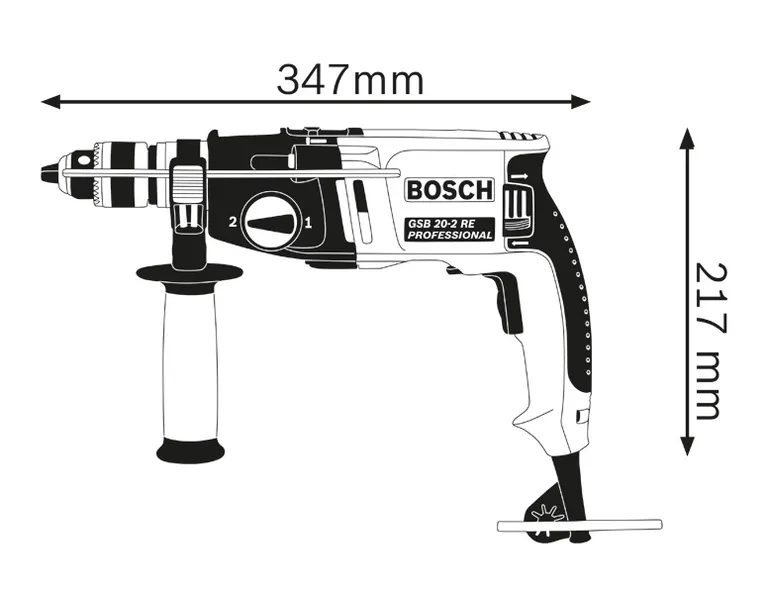

Tool dimensions (width) 85   mm
Tool dimensions (length) 346   mm
Tool dimensions (height) 220   mm
Impact rate at no-load speed 0 – 48,000   bpm
Drilling range
Drilling diameter in concrete 16 / 20   mm
Drilling diameter in wood* 25 / 40   mm
Drilling diameter in steel 8 / 13   mm
Drilling diameter in masonry* 22   mm

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.

Advantages

Powerful, dual-speed impact drill with superior durability and performance

  • Increased robustness with pot stacked metal gear housing design
  • Powerful 800 W motor for enhanced performance and durability
  • 2 gear functionality for dual speed coupled with dual mode impact shifter for increased versatility

Functions

Bosch Heavy Duty Bosch Heavy Duty - Power, Performance and Robustness redefined!
Woodworking The professional power tools for woodworking from Bosch.
What’s Included in this Package
with Auxiliary handle
with Auxiliary handle
Order number: 0 601 1A2 1F1
  • Auxiliary handle
  • Chuck key
  • Depth gauge
The GSB 20-2 RE in action!

Downloads

User Manual

GSB 20-2 RE (PDF 3.9 MB)

Download
