Large angle grinders 2000 W-2600 W

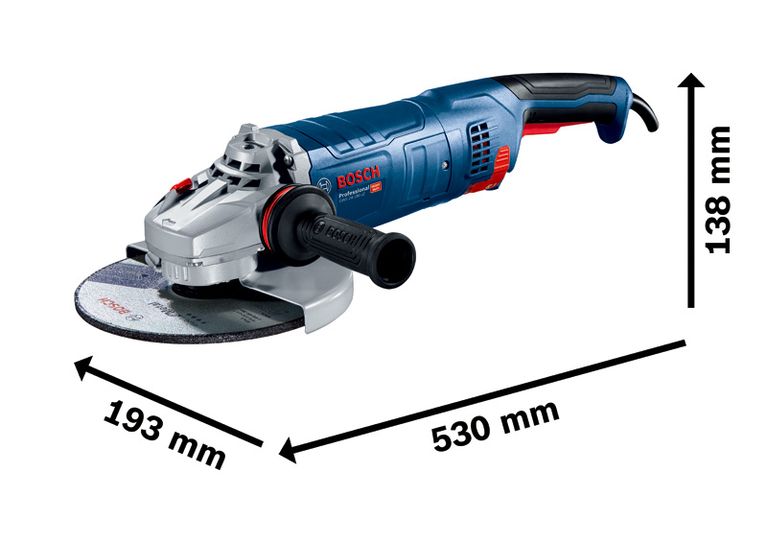

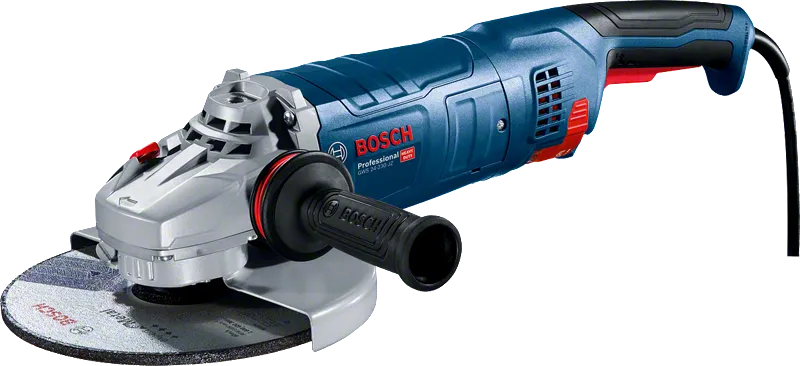

GWS 24-180 JZ Professional

Angle Grinder

Powerful 2,400W angle grinder with CYCLON TECH dust protection system for extended performance

World’s first CYCLON TECH removes up to 90% of dust from cooling air for up to 3X increased motor lifetime
New patented motor delivers up to 2X high overload capability for higher material removal rate
Precision engineered mechanical system together with the vibration control auxiliary handle reduces the vibration by 13% for the operator
Overload Protection shuts down the tool under extended overload conditions, to protect the tool
Restart Protection for increased user safety and Soft Start adds to convenience

Functions & key features

Your Selection

in cardboard box with spanner

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in cardboard box with spanner 0 601 8C2 3F0

Find a local dealer

Select a variant

Your Selection

in cardboard box with spanner

Order number: 0 601 8C2 3F0

Find a local dealer

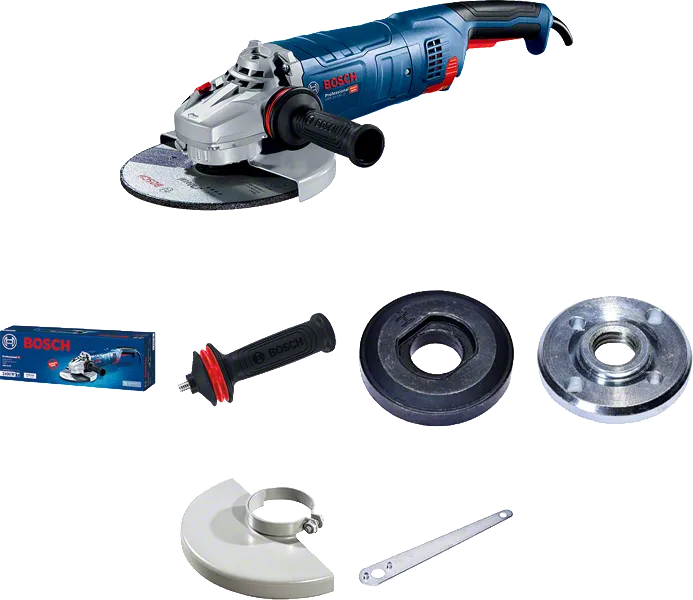

Included in all variants

Two-hole spanner

Order number: 1 607 950 061
Cardboard box
Locking nut

Order number: 1 603 345 043
Protective cover

Order number: 1 619 P15 622
Backing flange (spare part number 2 605 703 014)
Auxiliary handle

Order number: 1 602 025 030

Your selection

Your Selection

in cardboard box with spanner

Order number: 0 601 8C2 3K0

Find a local dealer

Included in all variants

Two-hole spanner

Order number: 1 607 950 061
Cardboard box
Locking nut

Order number: 1 603 345 043
Protective cover

Order number: 1 619 P15 622
Backing flange (spare part number 2 605 703 014)
Auxiliary handle

Order number: 1 602 025 030

Select Variant

Technical data

Additional data
Rated input power	2400 W
No-load speed	8,500 rpm
Disc diameter	180 mm
Voltage, electrical	230 V
Grinding spindle thread	M14
Main handle	Barrel
Rubber backing pad, diameter	180 mm
Grinding head, diameter	140 mm
Weight	5.8 kg
Switch	Lockable Switch

Total vibration values (Surface grinding (roughing))
Vibration emission value ah	6.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Sanding with sanding sheet)
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	104 dB(A)
Sound power level	94 dB(A)
Uncertainty K	3 dB

Surface grinding (roughing)
Vibration emission value ah	6.5 m/s²
Uncertainty K	1.5 m/s²

Sanding with sanding sheet
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

GWS 24-180 JZ Professional: Further information

Product Highlights

New GWS 24 JZ Professional unleashes 2400W of pure power that gets your jobs done faster, while CYCLON TECH dust protection system increases motor lifetime! The new motor delivers up to 2X higher material removal rate that results in faster job completion. The CYCLON TECH is world’s first dust protection system that removes up to 90% of dust from the cooling air, thereby increasing motor lifetime by up to 3X in extremely dusty work conditions. The Vibration Control auxiliary handle further increases operator comfort. Restart Protection and Soft Start adds to user safety, while Overload Protection shuts the tool down under extended overload conditions.

Equipment & Application

GWS 24 offers benchmark performance in metal and construction applications by delivering up to 2X higher material removal rate,so work gets done faster!

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.
