Receivers

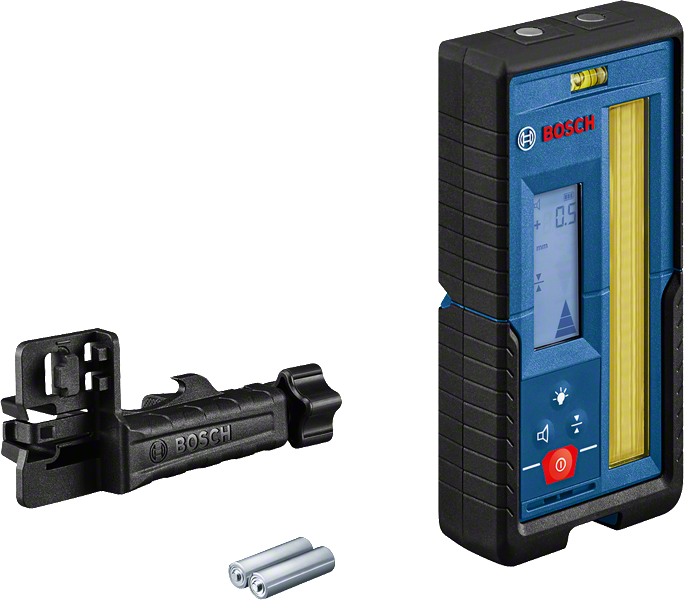

Bosch LR 45 laser receiver with mounting bracket.

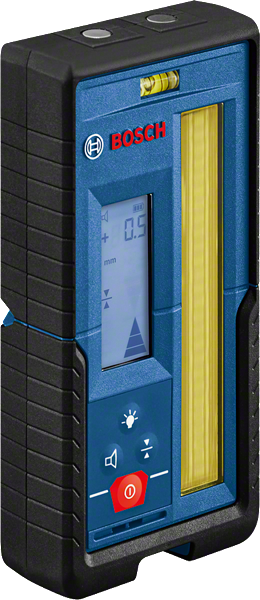

Bosch LR 45 laser receiver with digital display.
A person wearing safety equipment uses a laser receiver near metal wall studs.

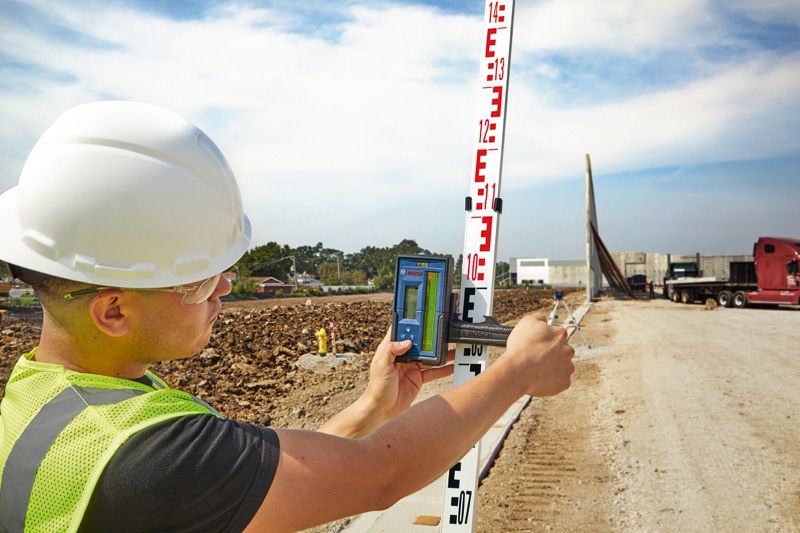

A person wearing safety equipment uses a laser receiver on a leveling rod at a construction site.

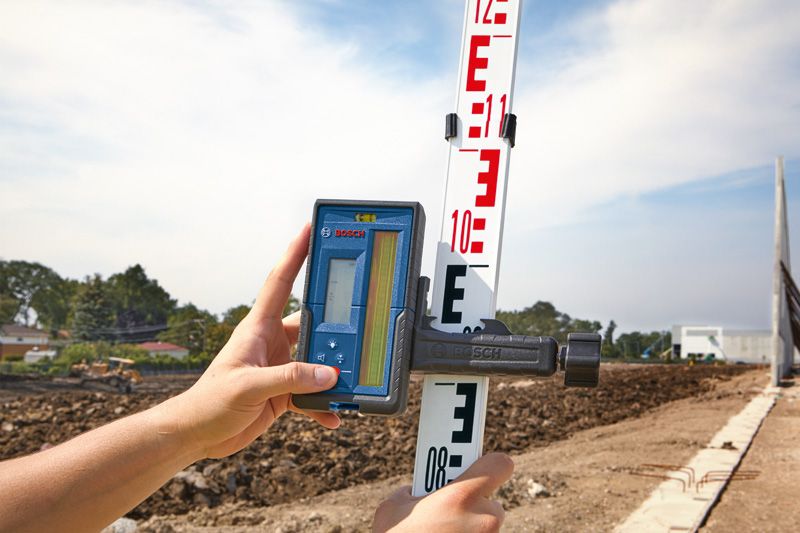

Person using a laser receiver attached to a leveling rod at a construction site.
A person wearing safety equipment attaches a laser receiver to a leveling rod at a construction site.

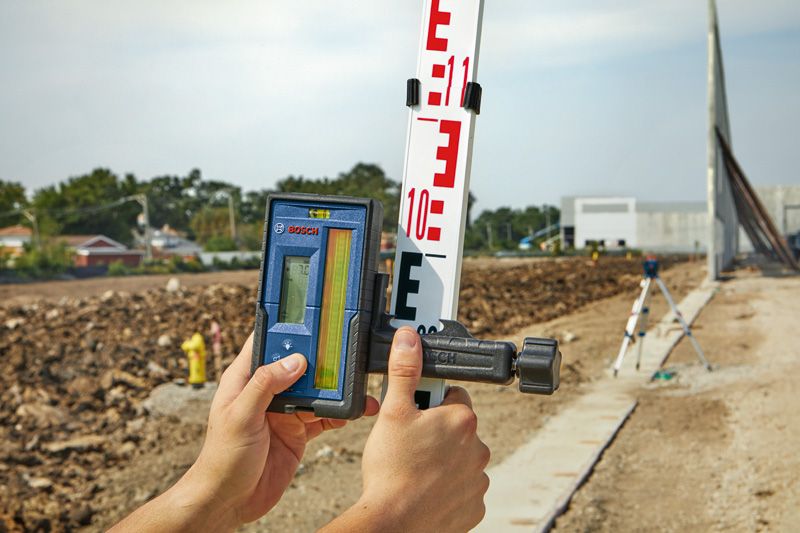

Person adjusting a laser receiver on a leveling rod at a construction site.
1/7

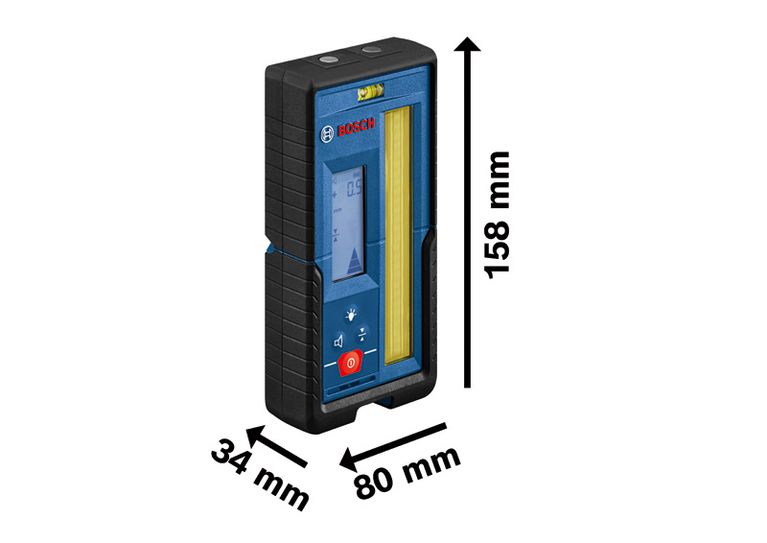

LR 45 Professional

Laser Receiver

Meet the perfect companion for quick and easy levelling

  • Quick and easy laser detection due to long reception area and dual-sided backlit LCD display with mm offset feature
  • Robust design thanks to ergonomic soft grip and IP66 protection
  • Adjustable sensitivity and volume settings ensure flexibility for any jobsite

Functions & key features

Green and red beam detection
Detection area length
±30.0 mm range
Dual-sided display
IP66

Your Selection

  • with 2 x battery (AA)
Show variant Find a local dealer

with 2 x battery (AA) 0 601 069 L00

LR 45 Professional

Your Selection

Bosch LR 45 laser receiver with mounting bracket.
with 2 x battery (AA)

Order number: 0 601 069 L00

Find a local dealer

Included in this variant

  • Receiver bracket RB 45 Professional (spare part number: 1 600 A00 FD1)
  • 2 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Dust and splash protection
IP 66
Range of
300 m m
Power supply
2 x 1.5 V LR6 (AA)
Measuring accuracy (fine/rough)
± 1 mm, ± 2 mm, ± 3 mm, ± 5 mm, ± 7 mm, ± 10 mm
Type of receiver
Rotation lasers
Bosch LR 45 laser receiver, 300 m range.

LR 45 Professional: Further information

Product Highlights

The robust laser receiver LR 45 Professional enables straightforward detection of green and red laser beams. The device’s long reception area and dual-sided backlit display with an mm offset feature ensure hassle-free laser detection. It is always ready for use on tough jobsites: an ergonomic soft grip and IP66 protection against dust and water are ideal to withstand rough conditions. Six different sensitivity settings and three volume settings (incl. off) offer the flexibility to easily adjust to any jobsite environment.

Equipment & Application

Suitable for both indoor and outdoor use, the LR 45 Professional is the ideal helper for tasks as varied as excavation, landscaping, façade work, concrete pouring, HVAC installation, and many more.

Additional Information

The LR 45 Professional has a long working range of up to 300 m. The integrated spirit level further simplifies any levelling job.
