Receivers

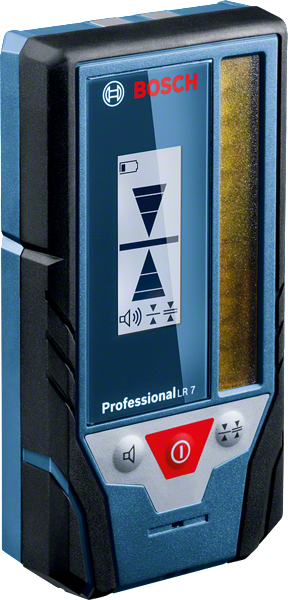

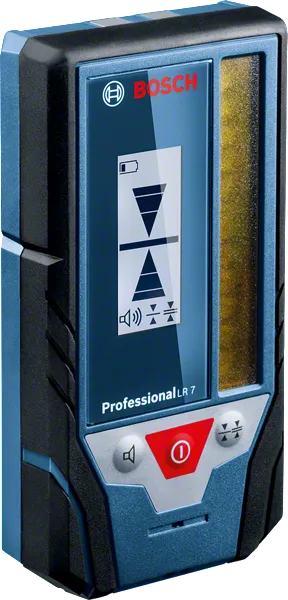

LR 7 Professional

Laser Receiver

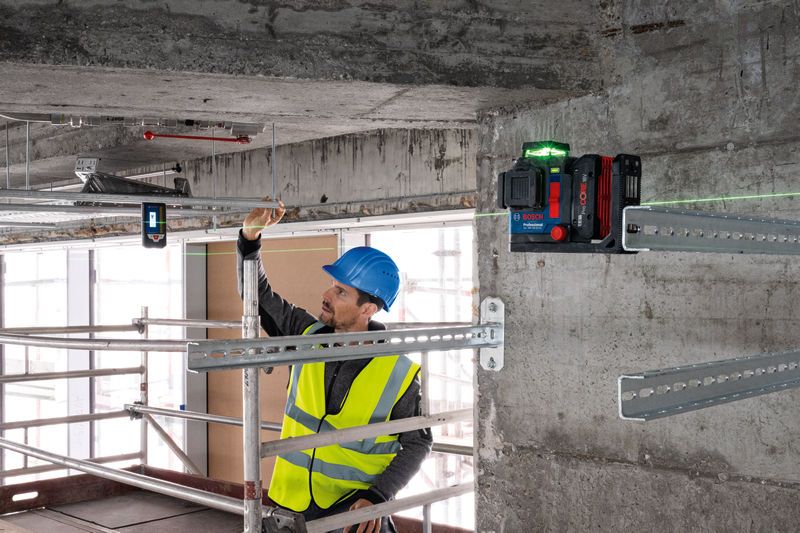

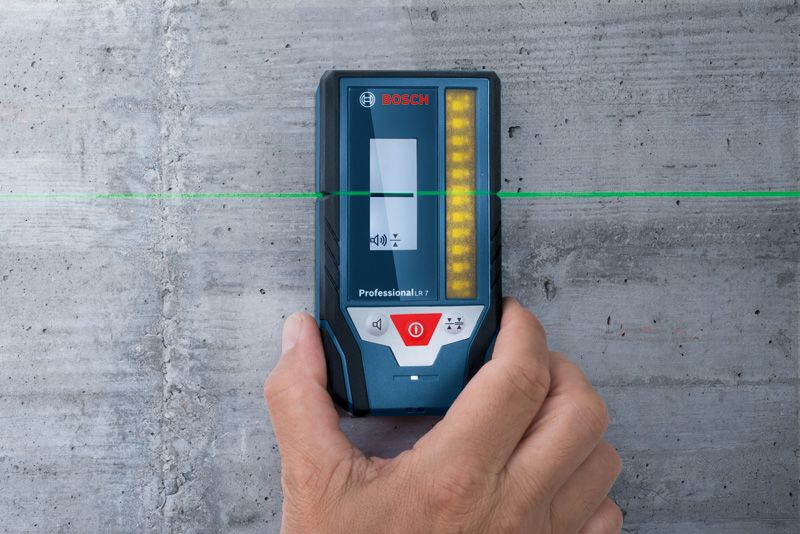

  • Ability to detect green and red laser lines
  • Large 8cm reception area for fast detection of laser line
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions & key features

Green and red beam detection
Reception area 80 mm
Display Illumination
Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection

Your Selection

  • with 2 x battery (AA), accessory set
Show variant
Check availability on location
Find a local dealer
with 2 x battery (AA), accessory set 0 601 069 J00
Find a local dealer

LR 7 Professional

Your Selection

with 2 x battery (AA), accessory set

Order number: 0 601 069 J00

Find a local dealer

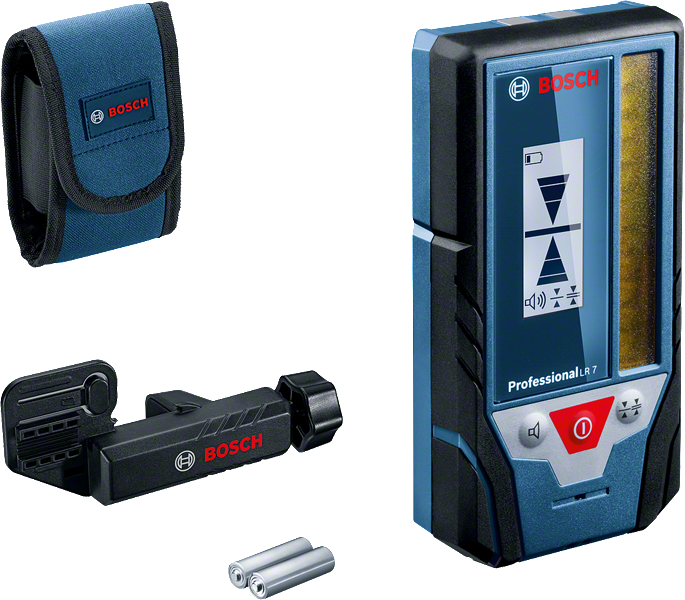

Included in this variant

  • Protective Bag

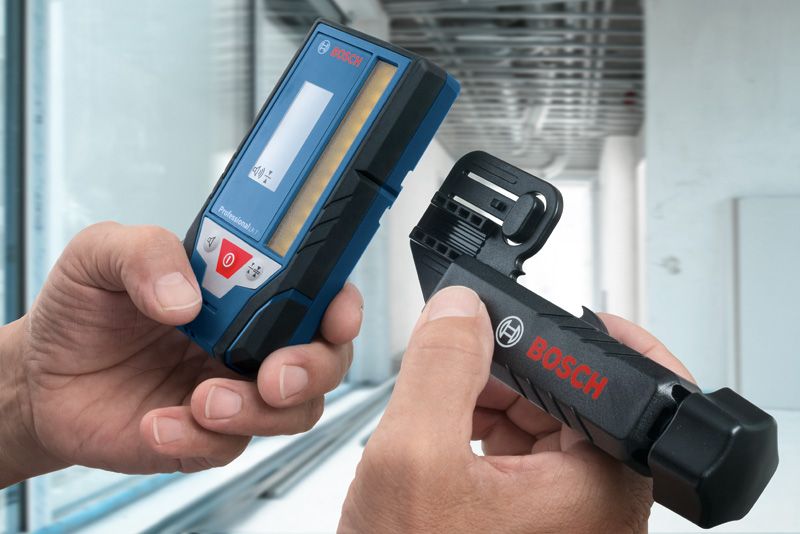

  • Bracket for laser receiver LR 6/7
    Order number: 1 608 M00 C1L
  • 2 x 1.5 V LR6 battery (AA)
Your selection

Technical data

Additional data

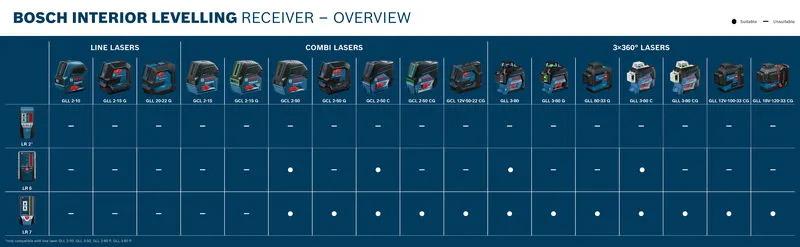

Type of receiver Combi- and line lasers
Dust and splash protection IP 54
Range of 5 – X m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used)
Power supply 2 x 1.5 V LR6 (AA)
Weight, approx. 150 g
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
