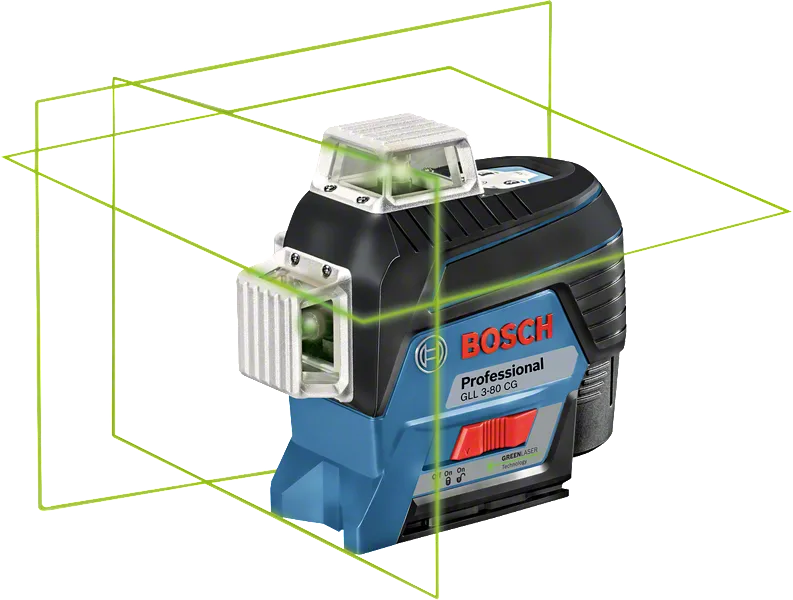

Line Laser GLL 3-80 CG Professional

Green supreme visibility in 3 x 360°. Simply connected.

Technical data
Additional data
Working range* 30   m
Working range with receiver* 120 m
Accuracy* ± 0.2 mm/m
Laser diode 500 – 540 nm, < 10 mW
Operating temperature, from -10   °C
Operating temperature, up to 40   °C
Operating temperature -10 – 40   °C
Storage temperature, from -20   °C
Storage temperature, up to 70   °C
Storage temperature -20 – 70   °C
Laser class 2
Working range with receiver, value 120   m
Working range without receiver, value 30   m
Working range without receiver 30 m
Self-levelling range ± 4°
Levelling time 4   s
Dust and splash protection IP 54
Power supply 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA)
Operating time (max.) 6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode
Tripod thread 1/4", 5/8"
Weight, approx. 0.9   kg
Colour of laser line green
Projection 3 x 360° line
Compatible laser receivers LR 7

* Highlighted Data

Advantages

Green supreme visibility in 3 x 360°. Simply connected.

  • Up to four times better visibility due to the green laser lines
  • Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool
  • High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool

Functions

Icon
Icon
Icon
 All Bosch Professional 10.8 V tools, batteries & chargers are 100% compatible with all Bosch Professional 12 V tools, batteries & chargers
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
What’s Included in this Package
in carrying case with 4 x battery (AA), accessory set
in carrying case with 4 x battery (AA), accessory set
Order number: 0 601 063 U80
  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • Laser target plate
  • Carrying case
  • Universal Holder BM 1 Professional 0 601 015 A00
  • Clamp 1 609 B00 839

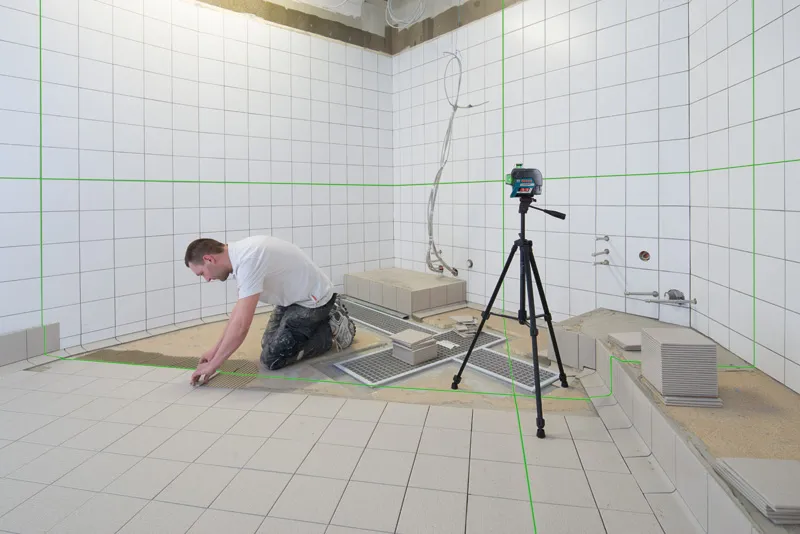

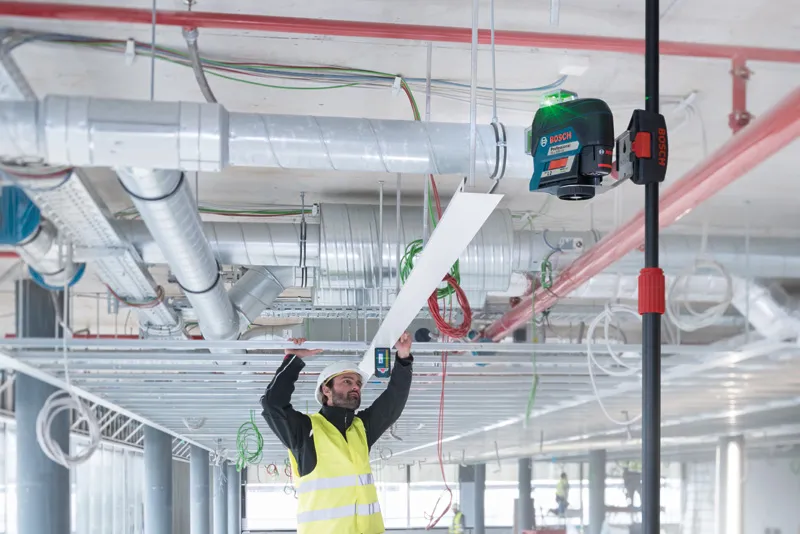

The GLL 3-80 CG in action!
